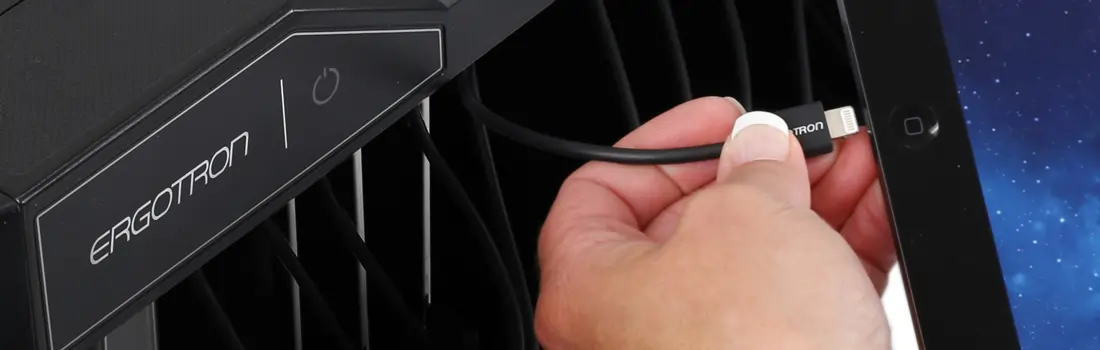

Which power supply / charger for which tablet?
If the battery of a tablet is empty, it has to be recharged. This can be done either via the included power adapter, a USB power plug adapter, a charger or directly on the notebook or computer. Charging via the computer or laptop is the slowest option, since at the standard voltage of 5 volts, normal USB 2.0 ports allow a maximum of 0.5 amps (A) and USB 3.0/3.1 ports allow a maximum of 0.9 amps (A).
Which charger / USB charger is suitable for the tablet? What should I pay attention to?
It is important that the power adapter / charger supplies the input voltage required / supported by the tablet. For smartphones and tablets, this is 5 volts. When charging smartphones and tablets, the wattage that the end device (tablet, smartphone or notebook) requires for charging is decisive (see table). This can be calculated using the voltage and current (see formula) and results from multiplying the current (amperes) and voltage (volts). Conversely, the charging current can also be determined in this way by dividing watts by volts.
Formula: P = U * I [W = V * A]
P = power in watts
U = voltage in volts
I = current in amperes
The current is expressed in amperes and differs depending on the type of charger. Ampere determines the speed of the charging process and should be as high as possible, although currently no more than 5 A is possible. If the ampere value is higher than the required power, it will not harm the connected device. The power adapter is merely underutilized. If the end device requires more amps than the power adapter can supply, it will not charge and the power adapter could become defective in the long run (if not fused). A charger / USB charger with, for example, 2 amps comes to a value of 10 watts at a voltage of 5 volts (2A x 5V = 10 W).
Does the voltage have to match exactly?
Yes, the voltage must be exactly the same, otherwise the end device may be damaged (regardless of whether the voltage is higher or lower).
Can the amperage be higher for the power supply?
- - Device needs more amperes than charger supplies
-> charger is overloaded and can become defective in the long run - - Device needs less amperes than charger supplies
-> everything is ok, charger is just not used to capacity
Example: A power supply / charger with 5 amps and 12 volts can charge tablets that require exactly 12 volts and a maximum of 5 amps.
Fast Charging - Charging tablets quickly
From a power of 18 watts, the charging process is considered "fast charging". The majority of modern devices nowadays have this function, which increases the wattage during the charging process in a controlled manner. To avoid overheating, special accessories are needed that communicate with the chip of the end device to throttle the charging speed in high heat.
Note: When charging the tablet, it is important to pay attention to the charger and the outlet that is used. Modern chargers work between 110 and 230 volts. Accordingly, one should make sure that no outlet outside of this range is used. The end device should not suffer any damage, but it will not charge at full power. Do not use a smartphone or tablet charging cable to charge a notebook / laptop as they use 5 volts, whereas most laptops require 18 volts (about 90 watts).
Rules of thumb:
- Charger with 5 volts and 1 to 2 amps for tablets.
- Charger with 18 volts and between 4 and 5 amps for notebooks / laptops.
Flush-mounted power supply units for tablets
Tablets are increasingly being permanently installed in suitable protective housings or in-wall solutions. The tablets are used for smart home control, as room managers or information terminals. To ensure that the tablets are continuously supplied with power, flush-mounted charging stations are used, which are installed in standard flush-mounted sockets. The chargers differ in terms of USB connection and amperage. For some, especially newer, tablets, a higher amperage is needed for charging to take place. Buy a flush mount power supply online:
- TecLines TNT001
- Flush mount USB power supply for wall mounting
- Input: 50/60Hz, 0.13-0.07A, 100-240V
- Output power: 5V, 1A, 5W
- smart things sCharge
- In-wall power supply with USB-C connector
- Input: 100 - 250 V~, ±10% , 50 - 60 Hz
- Output: 5 V, ±5%, 2400mA, 12W
- smart things sCharge
- In-wall power supply with microUSB
- Input: 100 - 250 V~, ±10%, 50 - 60 Hz
- Output: 5V, ±5%, 2400mA, 12W
- smart things sCharge
- In-wall power supply with USB lightning
- Input: 100 - 250 V~, ±10 % , 50 - 60 Hz
- Output: 5 V-, ±5%, 2400mA, 12W
Overview Tablets - By USB port, wattage and whether it is suitable for Fast Charging
| Tablet | USB - kind of | Wattage | Fast Charging possible? |
| Amazon fire HD 10 | USB-C | 9 W (bis 15W) | - |
| Amazon fire HD 8 | USB-C | 5 W (bis 15W) | - |
| Apple iPad 1 | Lightning | 12W | - |
| Apple iPad 10.2 (7. Gen.) | Lightning | 12W | - |
| Apple iPad 2 | Apple Ipad Ladegerät | 10W | - |
| Apple iPad 3 | Apple Ipad Ladegerät | 12W | - |
| Apple iPad 4 | Lightning | 12W | - |
| Apple iPad 5 (2017) | Lightning | 12W | - |
| Apple iPad 9.7 (2018) | Lightning | 12W | - |
| Apple iPad Air 1 | Lightning | 10W | - |
| Apple iPad Air 10.5 (2019) | Lightning | 12W | - |
| Apple iPad Air 10.5 (3. Gen.) | Lightning | 12W | - |
| Apple iPad Air 2 | Lightning | 10W | - |
| Apple iPad Mini 1 | Lightning | 12W | - |
| Apple iPad Mini 2 | Lightning | 10W | - |
| Apple iPad Mini 3 | Lightning | 10W | - |
| Apple iPad Mini 4 | Lightning | 10W | - |
| Apple iPad Mini 4, Apple iPad Mini 5 | Lightning | 12W | - |
| Apple iPad Mini 5 | Lightning | 12W | - |
| Apple iPad Pro 10.5 | Lightning | 12W | - |
| Apple iPad Pro 11.0 | USB-C | 18W | + |
| Apple iPad Pro 12.9 (2015) | USB-C | 12W | - |
| Apple iPad Pro 12.9 (3. Gen. 2018) | USB-C | 18W | + |
| Apple iPad Pro 12.9 (4. Gen. 2020) | USB-C | 18W | + |
| Apple iPad Pro 9.7 | Lightning | 12W | - |
| Google Pixel C (2017) | USB-C | 18W | + |
| Microsoft Surface 3 | Mikro USB 2.0 | 13W | - |
| Microsoft Surface Go | Surface Go Ladegerät | 24W | + |
| Microsoft Surface Pro 3 | Surface Pro Ladegerät | 48W | + |
| Microsoft Surface Pro 4 | Surface Pro Ladegerät | 36W | + |
| Microsoft Surface Pro 6 | Surface Pro Ladegerät | 44W | + |
| Microsoft Surface Pro 7 | Surface Pro Ladegerät | 65W | + |
| Samsung Galaxy Note 10.1 | ECC1DPU | 18W | + |
| Samsung Galaxy Note 4 | Mikro USB 2.0 | 10W (bis 18W) | + |
| Samsung Galaxy Note Pro 12.2 | Micro USB 3.0 | 4.5W | - |
| Samsung Galaxy Tab 2 10.1 | ECC1DPU | 18W | + |
| Samsung Galaxy Tab 3 10.1 | Micro USB 2.0 | 10W | - |
| Samsung Galaxy Tab 3 7.0 | Micro USB 2.0 | 7W (bis 18W) | + |
| Samsung Galaxy Tab 3 8.0 | Micro USB 2.0 | 18W | + |
| Samsung Galaxy Tab 4 10.1 | Micro USB 2.0 | 7W (bis 18W) | + |
| Samsung Galaxy Tab 4 7.0 | Micro USB 2.0 | 7W (bis 18W) | + |
| Samsung Galaxy Tab A 10.1 (2016) | Micro USB 2.0 | 10W | - |
| Samsung Galaxy Tab A 10.1 (2019) | USB-C | 18W | + |
| Samsung Galaxy Tab A 10.5 | Micro USB 2.0 | 10W | - |
| Samsung Galaxy Tab A 7.0 | Micro USB 2.0 | 7W (bis 18W) | + |
| Samsung Galaxy Tab A 9.7 | Micro USB 2.0 | 10W (bis 18W) | + |
| Samsung Galaxy Tab E 9.6 | Micro USB 2.0 | 10W (bis 18W) | + |
| Samsung Galaxy Tab Pro 10.1 | Micro USB 2.0 | 7W (bis 18W) | + |
| Samsung Galaxy Tab Pro 12.2 | Micro USB 2.0 | 7W (bis 18W) | + |
| Samsung Galaxy Tab Pro 8.4 | Micro USB 2.0 | 7W (bis 18W) | + |
| Samsung Galaxy Tab Pro S 12.0 | Micro USB 2.0 | 7W (bis 18W) | + |
| Samsung Galaxy Tab S2 8.0 | Micro USB 2.0 | 7W (bis 18W) | + |
| Samsung Galaxy Tab S2 9.7 | Micro USB 2.0 | 10W | - |
| Samsung Galaxy Tab S3 9.7 | USB-C | 15W | - |
| Samsung Galaxy Tab S4 10.5 | USB-C | 15W | - |
| Samsung Galaxy Tab S5e | USB-C | 15W | - |
| Samsung Galaxy Tab S5e 10.5 | USB-C | 15W | - |
| Samsung Galaxy Tab S6 | USB-C | 15W | - |
| Samsung Galaxy Tab S6 10.5 | USB-C | 15W | - |
| Samsung Galaxy TabPro S 12.0 | USB-C | 15W | - |
| TrekStore SurfTab theatre 13.3 | Mikro USB 2.0 | 2.5W | - |
