RAM Mounts GDS Uni-Conn Dock lockable left (RAM-GDS-DOCKLL-U1CPU)

Why does the lockable RAM Mounts Uni-Conn docking station provide extra security for your tablet?

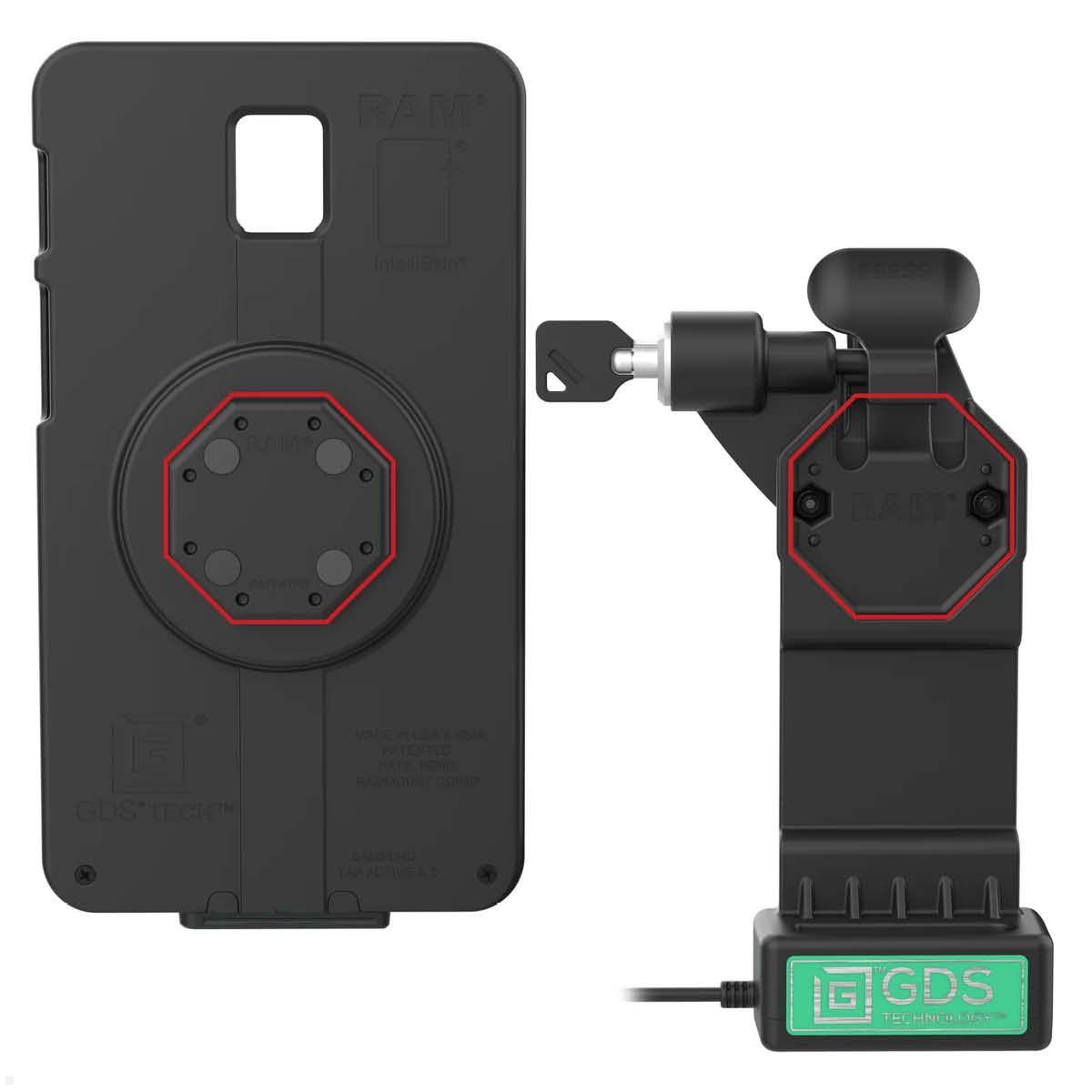

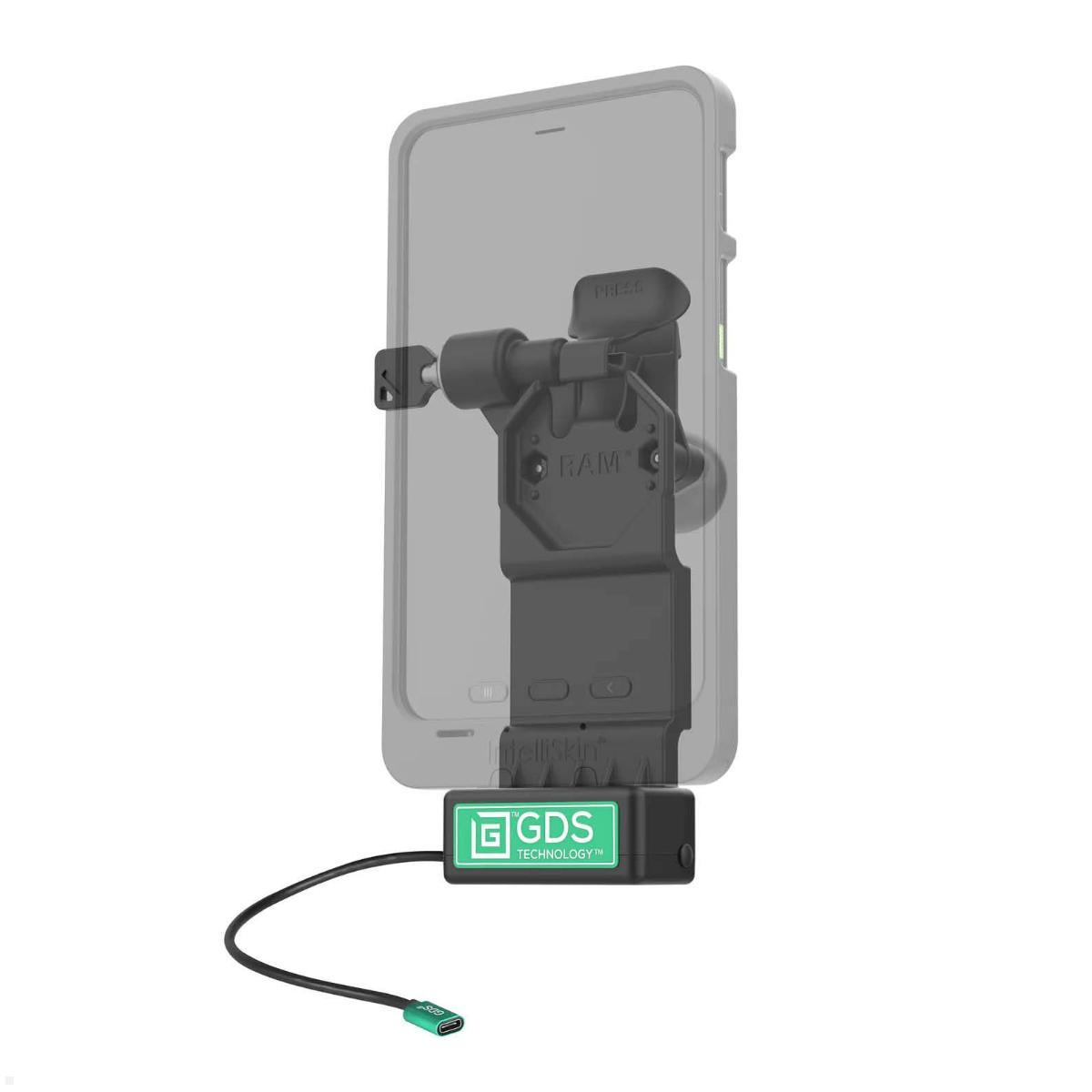

In many professional environments, tablet security is a central concern. The RAM Mounts GDS Uni-Conn Dock lockable left (RAM-GDS-DOCKLL-U1CPU) combines the proven snap-in functionality of the Uni-Conn system with an integrated key lock on the left side. This allows the tablet to be secured in the docking station against unauthorized removal without sacrificing ease of use. The holder is specifically designed for devices in IntelliSkin protective cases with the Uni-Conn adapter and provides a reliable power connection via integrated pogo pins for USB-C charging with up to 60W of power. Inserting the tablet is done by simply placing and pressing it in until it audibly snaps in. To remove it, the key lock must first be opened and then the lever is actuated. With the AMPS 2-hole pattern, the docking station can be flexibly mounted to various RAM Mounts mounting systems. The input cable length of approximately 215 mm provides enough slack for neat cable routing during installation.

Which tablets are compatible with the lockable Uni-Conn docking station?

The lockable docking station is, like the standard version, designed for use with IntelliSkin protective cases and the Uni-Conn adapter RAM-GDS-U1U. Currently, the Samsung Galaxy Tab models Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3 and Tab A9+ are compatible with the fixed docking height. The key lock is located on the left side of the holder, which should be considered when choosing the mounting position. For installations that require the lock on the right side, RAM Mounts offers a corresponding variant. The supplied lever stop is required for proper operation and must be installed. As with all Uni-Conn snap-in docks, this variant is not recommended for use in open cabs such as forklifts. For such demanding environments, the more robust GDS Tough-Dock holders are available, which are specifically designed for harsh conditions. When planning the installation, it should also be noted that the lockable version is slightly wider at 108.5 mm than the standard variant.

In which application areas is the lockable charging station particularly useful?

The key lock makes this docking station especially attractive for publicly accessible areas where tablets need protection against theft. In retail, tablets can be securely mounted at information terminals or POS systems without employees having to keep constant watch over the device. In reception areas, medical practices or at trade show booths, the lockable holder provides the assurance that the tablet cannot be removed without authorization. Also in delivery vehicles or public transport, where tablets are used for passenger information or ticketing, theft protection is a decisive advantage. The compact dimensions of 108.5 x 214.4 x 77.0 mm and the weight of approximately 322 grams allow for an inconspicuous installation. The output voltage of 5 to 20 volts at 3 amperes covers the charging needs of all compatible tablets. The docking station can be seamlessly integrated into the extensive RAM Mounts mounting program via the AMPS hole pattern and combined with additional accessories, offering a variety of mounting options. Thus, the lockable Uni-Conn docking station is suitable wherever functionality, charging convenience and theft protection are equally important.
