RAM Mounts GDS Uni-Conn Docking Station USB-C AMPS (RAM-GDS-DOCK-U1CPU)
Highlights
- Snap-in docking station with USB-C
- Up to 60W charging power
- AMPS 2-hole mounting pattern
- Easy docking and undocking
- Compatible with Uni-Conn adapter

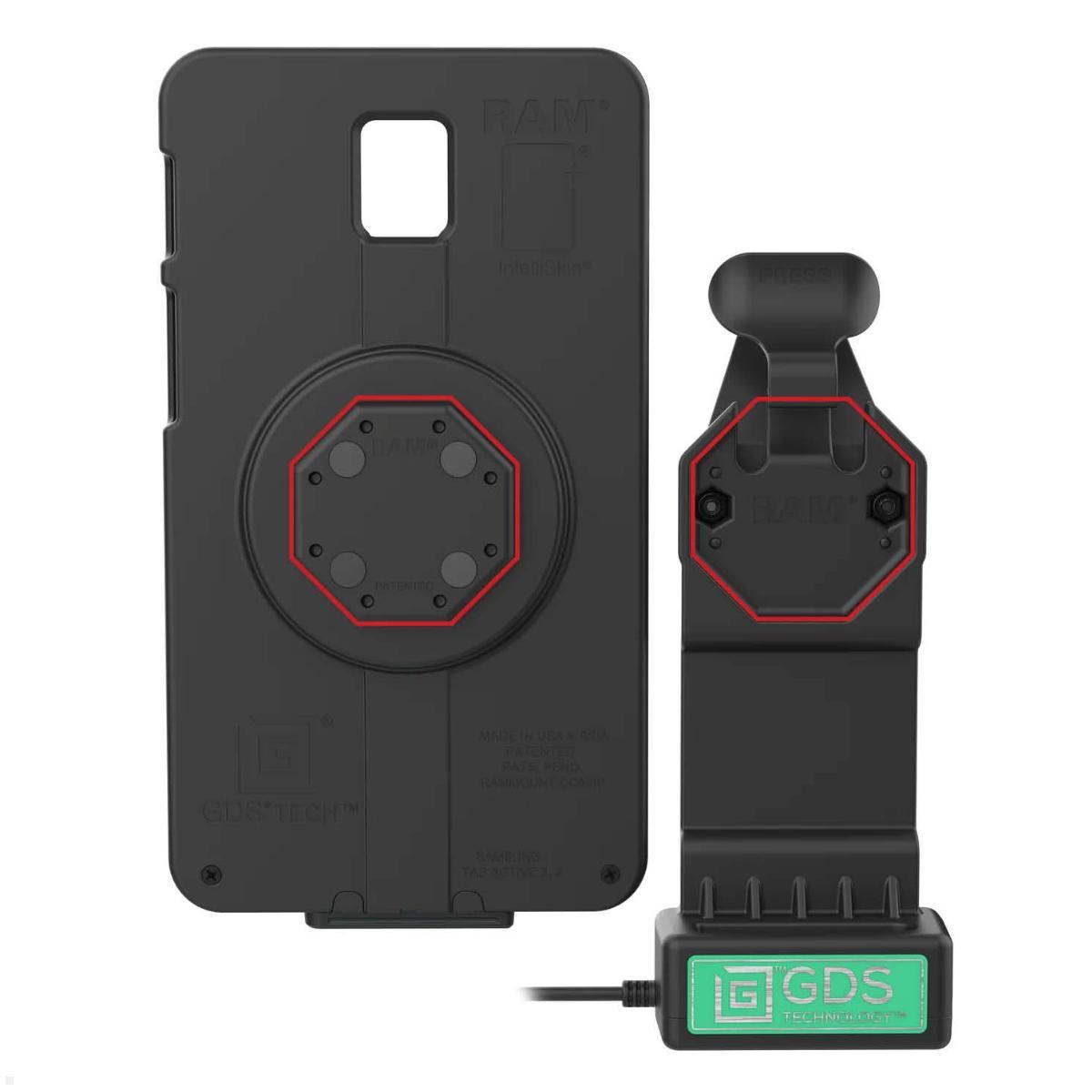

GDS Uni-Conn Snap-In Docking Station with USB-C for IntelliSkin Tablets

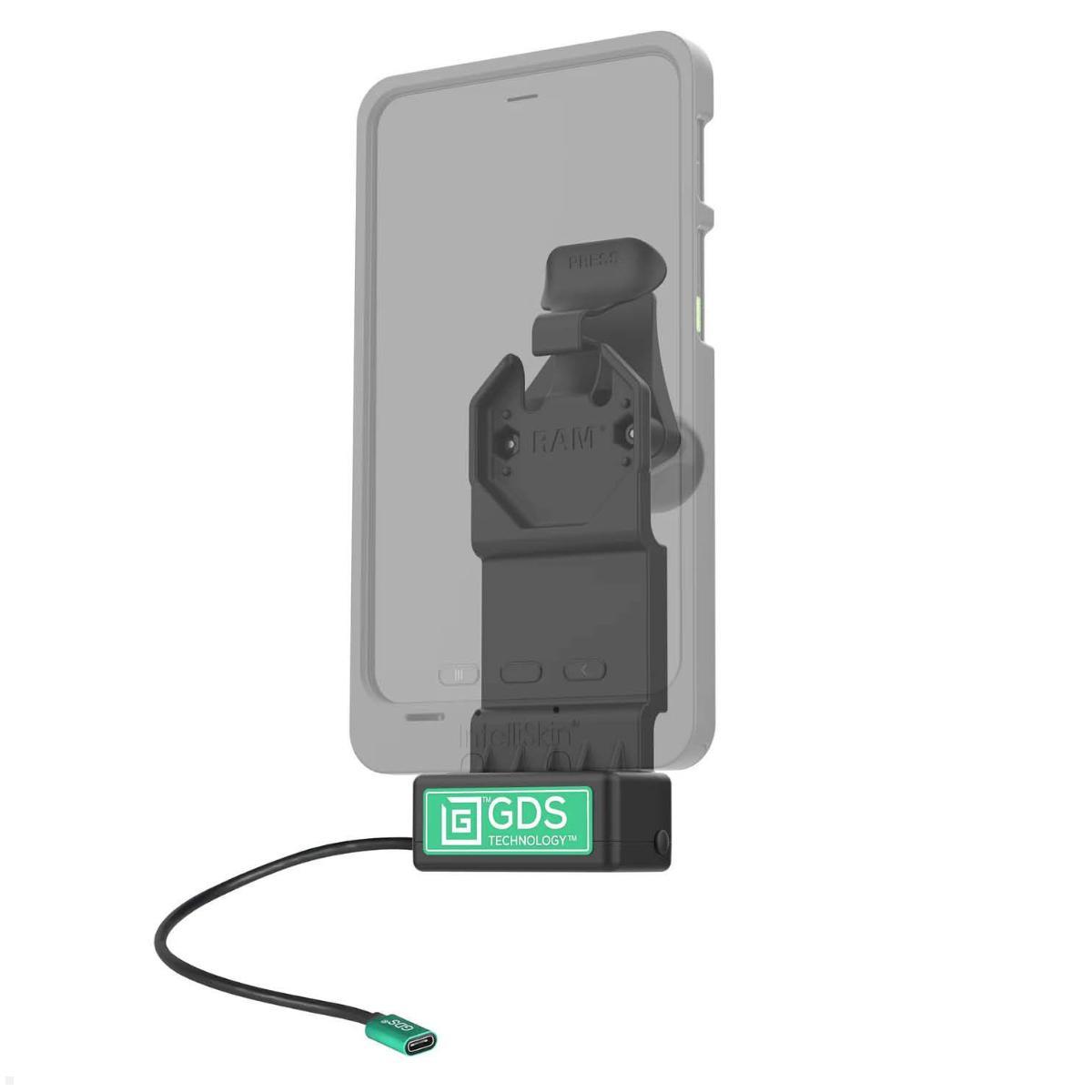

The RAM Mounts GDS Uni-Conn USB-C AMPS Docking Station (RAM-GDS-DOCK-U1CPU) is a universal snap-in holder for tablets with IntelliSkin protective case and Uni-Conn adapter. The tablet is simply inserted and pushed back until it clicks into place. To remove it, press the lever. Power is supplied via USB-C with up to 60W charging power.
The integrated pogo pins enable data transfer in addition to charging. The AMPS 2-hole pattern allows the docking station to be flexibly mounted to various RAM Mounts brackets. Compatible with Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3 and Tab A9+. Ideal for professional use in vehicles, at the workplace or in the mobile field service.
Technical Details RAM Mounts GDS Uni-Conn Docking Station USB-C
- Compatible with IntelliSkin protective cases and Uni-Conn adapter
- Snap-in function with lever release
- Connector: USB-C
- Output power: max. 60W
- Output voltage: 5 - 20V @ 3A
- Input cable length: approx. 215 mm
- Mounting: AMPS 2-hole pattern
- Dimensions (W×H×D): 80.2 x 214.4 x 77.0 mm
- Weight: approx. 223 g
- Lever stop included
- Not recommended for open cockpits
- Color: Black
| Contains installation material: | + |
|---|---|
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts GDS Uni-Conn Docking Station USB-C AMPS?
A universal Snap-In cradle for tablets with IntelliSkin case and Uni-Conn adaptor; USB-C charging up to 60 W; integrated pogo pins enable charging and data transfer.
-
How does the Snap-In mechanism work?
Snap-In function with lever release: insert the tablet and push back until it clicks; to remove, press the lever.
-
Which tablets are compatible?
Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3 and Tab A9+.
-
What are the power specifications?
USB-C output up to 60 W; output 5–20 V @ 3 A.
-
What are the dimensions and weight?
Dimensions: 80.2 x 214.4 x 77.0 mm; weight approximately 223 g; input cable length about 215 mm.
-
How is it mounted?
AMPS 2-hole pattern for mounting to RAM Mounts.
-
Are there any usage notes?
Not recommended for open cockpits.
-
Is a lever stop included?
Yes, a lever stop is included in the package.
Why is the RAM Mounts GDS Uni-Conn Docking Station the optimal charging solution for IntelliSkin tablets?
In professional use, tablets must be reliably charged and securely held. The RAM Mounts GDS Uni-Conn Docking Station USB-C AMPS (RAM-GDS-DOCK-U1CPU) was designed precisely for these requirements. As a universal snap-in holder, it accepts tablets fitted with an IntelliSkin protective case and the GDS Uni-Conn adapter. Insertion is done by simply laying the device in and pressing until it audibly clicks into place. To remove it, press the integrated lever. The charging power of up to 60W via the USB-C port ensures that even larger tablets are charged quickly and efficiently. The integrated pogo pins provide a stable connection that enables both power delivery and data transfer. With the 2-hole AMPS pattern, the docking station can be flexibly mounted to various RAM Mounts holding systems, whether in a vehicle, at a workstation, or on a wall mount. The input cable length of approximately 215 mm provides sufficient slack for clean cable routing.
Which tablets are compatible with the Uni-Conn docking station?
The GDS Uni-Conn Docking Station is designed for use with IntelliSkin protective cases and the Uni-Conn adapter. Currently, the Samsung Galaxy Tab models Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3 and Tab A9+ are compatible with this fixed docking height. For correct operation, the GDS Uni-Conn adapter RAM-GDS-U1U must be mounted on the IntelliSkin protective case. The snap-in function ensures that the tablet remains securely in the holder even under vibration or shock. The supplied lever stop is required for proper operation and must be installed; otherwise the warranty will be void. It is important to note that the Uni-Conn snap-in docks are not recommended for use in open cabs such as forklifts. For such demanding environments, RAM Mounts offers the more robust GDS Tough-Dock mounts, which are specifically designed for harsh conditions. If in doubt about compatibility, it is advisable to check in advance whether the specific tablet model is compatible with the fixed docking height of this station.
For which use cases is the USB-C charging station particularly suitable?
The Uni-Conn Docking Station is ideal for use in vehicles, where tablets can be charged during transit and simultaneously used as navigation or information systems. In transportation and logistics, drivers benefit from the easy handling, since the tablet can be inserted and removed with one hand. At a stationary workplace, the charging station provides a practical solution for point-of-sale terminals, reception desks, or picking workstations. In healthcare, the docking station enables hygienic storage and simultaneous charging of the tablet between uses. The compact dimensions of 80.2 x 214.4 x 77.0 mm and the low weight of approximately 223 grams also allow installation in tight mounting locations. Through the AMPS hole-pattern mounting, the docking station can be combined with the extensive RAM Mounts mounting range, offering a virtually unlimited variety of mounting options. The output voltage of 5 to 20 volts at 3 amps covers the charging needs of all compatible tablet models reliably and ensures rapid readiness for use after each charging cycle.
