smart things sCharge PoE Gbit USB-C power adapter with Gigabit LAN (s38 C)
€120.26*
delivery time: Delivery from manufacturer announced for week 36
Highlights
- PoE-to-USB-C power supply with Gigabit LAN
- USB-C Power Delivery up to 27 W
- Data rates up to 1000 Mbps (Gigabit)
- IEEE 802.3af/at PoE standard
- Concealed wall mount, compact

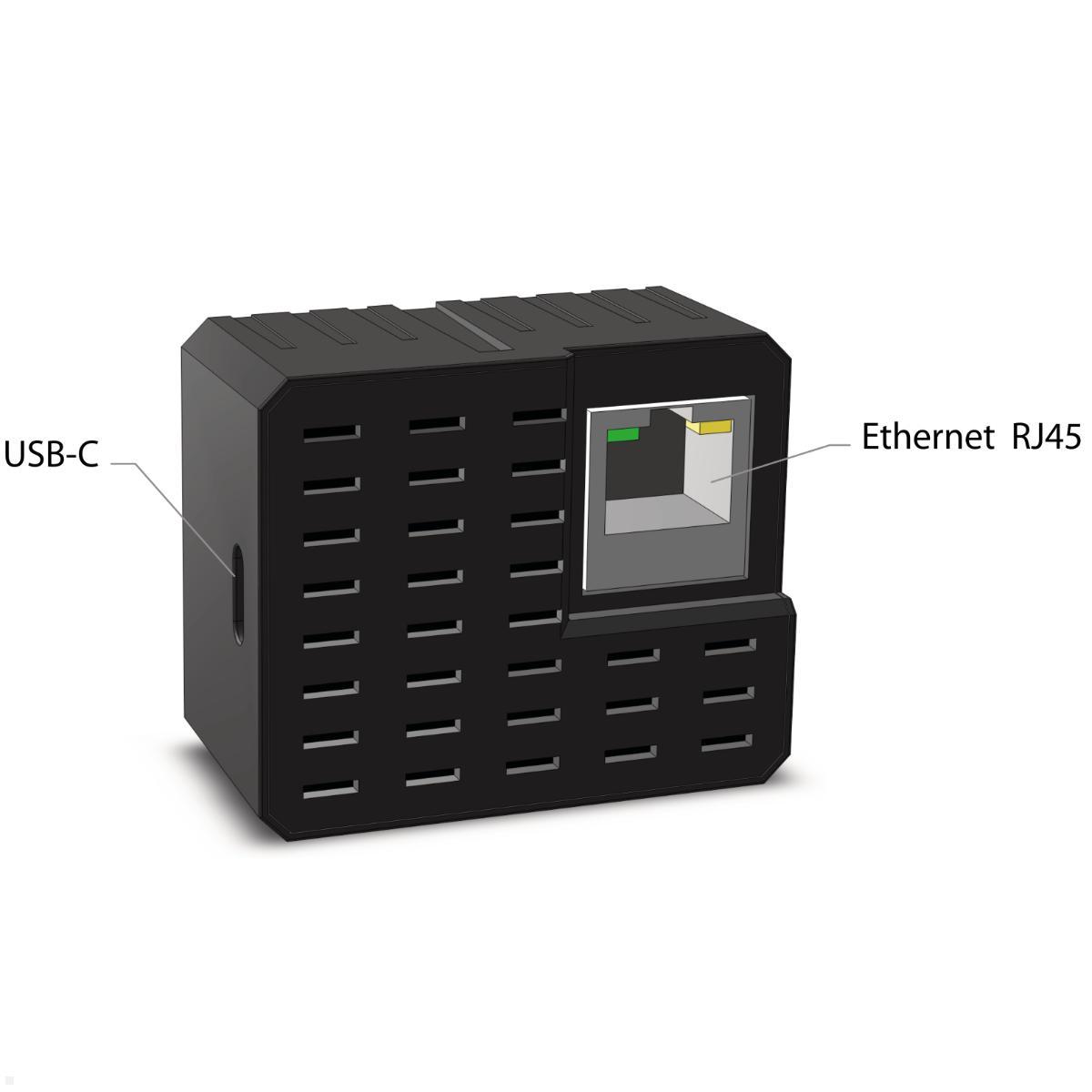

PoE-to-USB-C power supply module with Gigabit LAN for Smart Spaces
The smart things sCharge PoE Gbit USB-C power supply with Gigabit LAN (s38 C) is an integrated Power-over-Ethernet module that combines high-speed data transmission and stable power delivery in a compact device. With a single RJ45 cable the PoE power supply delivers both data and power to USB-C devices – additional power outlets or complex cabling are completely eliminated. The module supports the USB 3.0 standard for fast data transfer as well as a USB-C power delivery of up to 27 W with multiple PD profiles. Thanks to the modular structure and the design for concealed mounting, the smart things sCharge PoE Gbit is ideal for clean integration into walls and is the perfect solution for tablet-based control systems in smart homes, commercial areas and industrial environments. The PoE standard IEEE 802.3at ensures reliable power delivery over network cables up to 100 m distance.
Technical details smart things sCharge PoE Gbit USB-C power supply
- PoE-to-USB-C power supply module with Gigabit LAN
- PoE standard: IEEE 802.3af/at
- Input: 44 – 57 V⎓
- USB-C PD profiles: 5.0V⎓ 2.6A / 9.0V⎓ 1.75A / 12.0V⎓ 1.45A / 15.0V⎓ 1.37A / 20.0V⎓ 1.15A
- Maximum power output: 27 W
- Data rates: 10/100/1000 Mbps (Gigabit)
- USB standard: USB 3.0, USB 2.0, USB 1.1
- Compatible with USB-C tablets and devices
- Compatible with IEEE 802.3af/at PoE switches or injectors
- Backfeed support for temporary installations
- Concealed wall mounting
- Approvals: CE, FCC, RoHS
- Dimensions (H×W×D): 85 x 82 x 33 mm
- Weight: 80 g

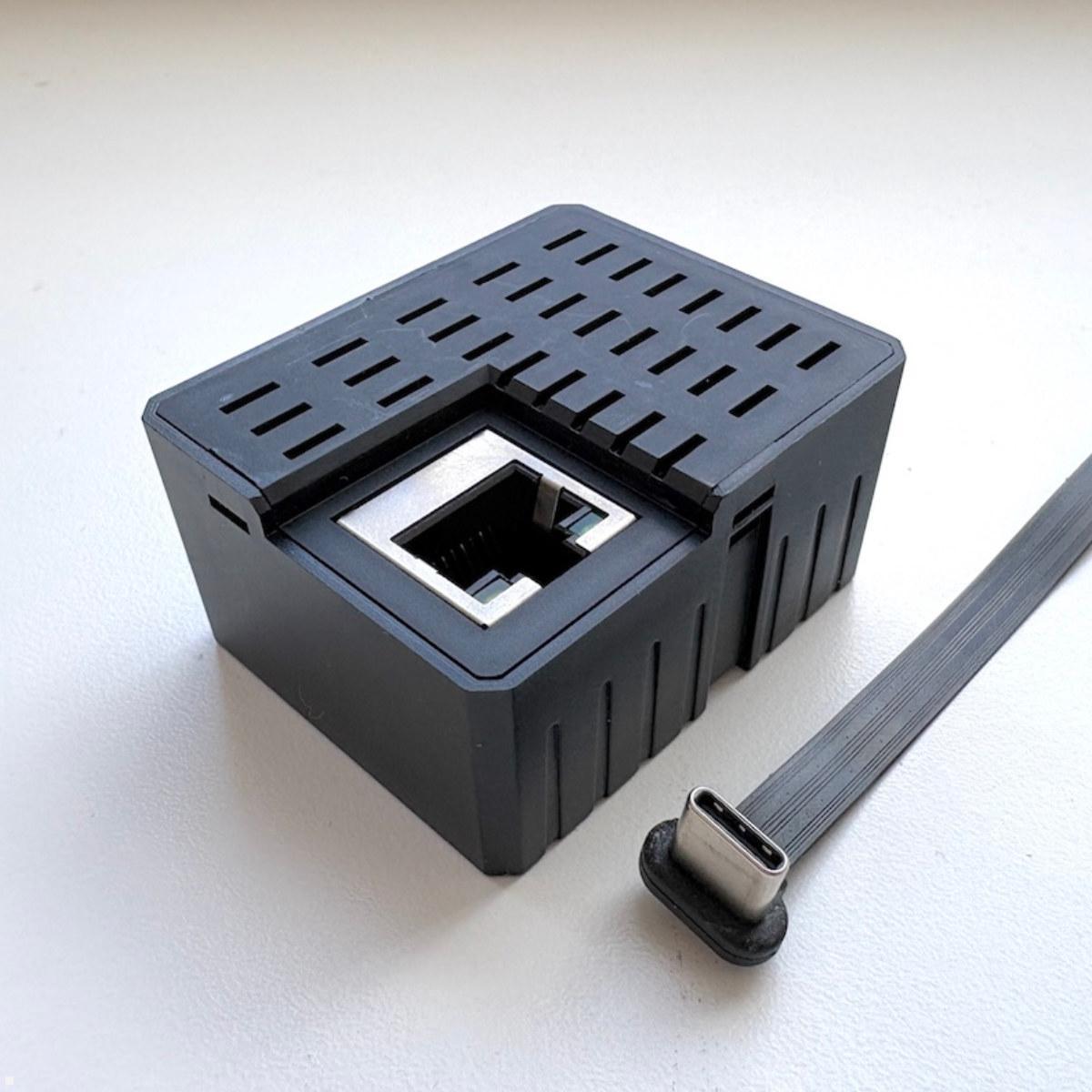

- Scope of delivery: sCharge PoE GBIT, USB-C cable 230 mm
| Product sheet: |  [pdf] |
|---|---|
| Scope of delivery: | 1x sCharge PoE GBIT | 1x USB-C cable 230 mm |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | smart things solutions GmbH, Grubmühlerfeldstraße 54, 82131 Gauting, info@smart-things.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the smart things sCharge PoE Gbit USB-C power supply module (s38 C)?
An integrated PoE-to-USB-C power supply module with Gigabit LAN, delivering data and power over a single RJ45 cable to USB-C devices, designed for clean wall installation.
-
Which PoE standards does it support?
IEEE 802.3af/at PoE standards; compatible with IEEE 802.3af/at PoE switches or injectors.
-
What USB-C PD profiles are supported?
5.0V⎓ 2.6A; 9.0V⎓ 1.75A; 12.0V⎓ 1.45A; 15.0V⎓ 1.37A; 20.0V⎓ 1.15A.
-
What data rates does it support?
Data rates: 10/100/1000 Mbps (Gigabit).
-
What connections/compatibility does it have?
Over a single RJ45 cable it delivers both data and power; compatible with USB-C tablets and devices as well as IEEE 802.3af/at PoE switches or injectors.
-
What are the dimensions and mounting options?
Dimensions: 85 × 82 × 33 mm; Weight: 80 g; concealed wall mounting compatible.
-
What is included in the package?
Package contents: sCharge PoE GBIT and USB-C cable 230 mm.
Kunden kauften auch
Why is the smart things sCharge PoE Gbit the ideal power supply for smart home tablets?
The smart things sCharge PoE Gbit USB-C power supply with Gigabit LAN (s38 C) was specifically developed for use in modern Smart Spaces where tablets serve as central control terminals. By combining Power over Ethernet and Gigabit data transmission in a single compact module, the need for separate power outlets and additional network cables is eliminated. The PoE power supply delivers both power and network connectivity to the connected USB-C device over a single RJ45 cable. The USB-C Power Delivery function provides up to 27 W of charging power and supports multiple PD profiles from 5 V to 20 V, so a wide range of USB-C tablets and devices can be reliably powered. The module complies with the PoE standard IEEE 802.3af/at and is therefore compatible with all common PoE switches and PoE injectors. The integrated Gigabit LAN interface achieves data rates of up to 1000 Mbps, ensuring lag-free communication between the control terminal and the network.

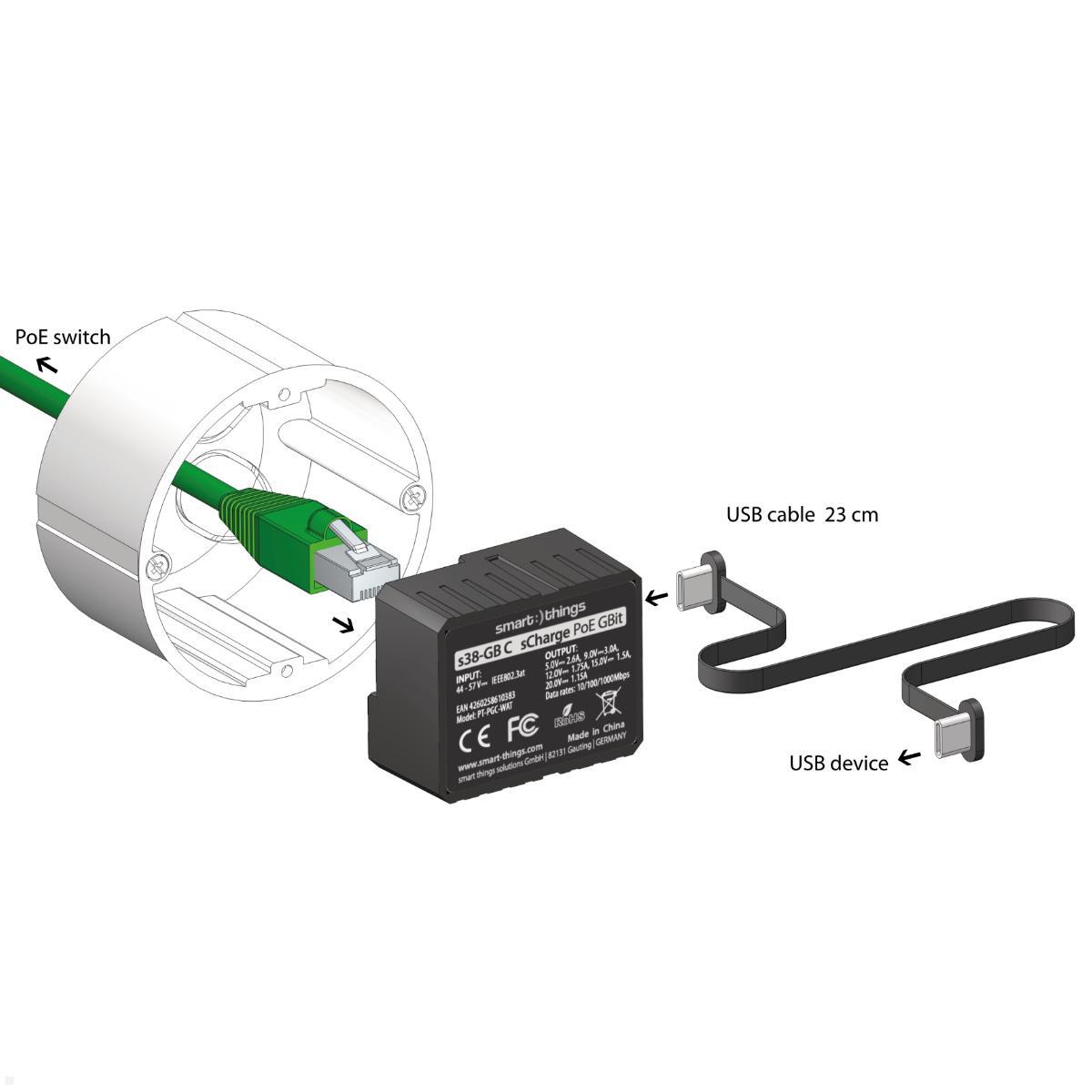

What are the advantages of the concealed wall mounting of the PoE power supply?
The smart things sCharge PoE Gbit is designed for concealed integration into the wall and disappears completely behind the tablet or in a flush-mounted box. With its compact dimensions of 85 x 82 x 33 mm (H x W x D) and a weight of only 80 g, the module can be unobtrusively integrated into almost any wall construction. This mounting method provides a clean, professional appearance without visible cables or power supplies and is ideal for smart home installations, conference rooms, reception areas and commercial environments. The modular design greatly simplifies installation and later maintenance. Thanks to reverse power feeding, the module can also be temporarily powered via USB-C, which is particularly practical during initial installation or in an emergency. The comprehensive safety tests according to CE, FCC and RoHS guarantee reliable operation even under continuous use.
With which devices and systems is the smart things sCharge PoE Gbit compatible?
The smart things sCharge PoE Gbit USB-C power supply is universally applicable and compatible with all USB-C-capable tablets and devices. Especially in combination with the smart things sDock and sDock Fix wall mounts, a complete smart home control solution is created in which the tablet is permanently wall-mounted, charged and connected to the network. On the network side, the module works with all IEEE 802.3af/at-compatible PoE switches and PoE injectors. The USB interface supports the standards USB 3.0, USB 2.0 and USB 1.1, so both modern tablets and older devices can be connected. The Gigabit data transmission with speeds of 10, 100 or 1000 Mbps automatically adapts to the network environment. The scope of delivery includes the sCharge PoE GBIT module as well as a 230 mm long USB-C cable for direct connection to the tablet or end device. The smart things sCharge PoE Gbit USB-C power supply with Gigabit LAN is thus the central component for professional, cable-reduced installations in intelligent buildings.
