smart things WallBase 55 Wave magnetic Qi Charger Flush-mounted (WB55 b), matte black
Highlights
- Flush-mounted Qi charger up to 15 watts
- Incl. flush-mounted power supply sC20
- Magnetic smartphone holder
- Compatible with Gira, Jung, Berker
- Qi-certified, QI-ID 26820
Flush-mounted Qi Charging Station for Smartphones Compatible with Gira Jung Berker

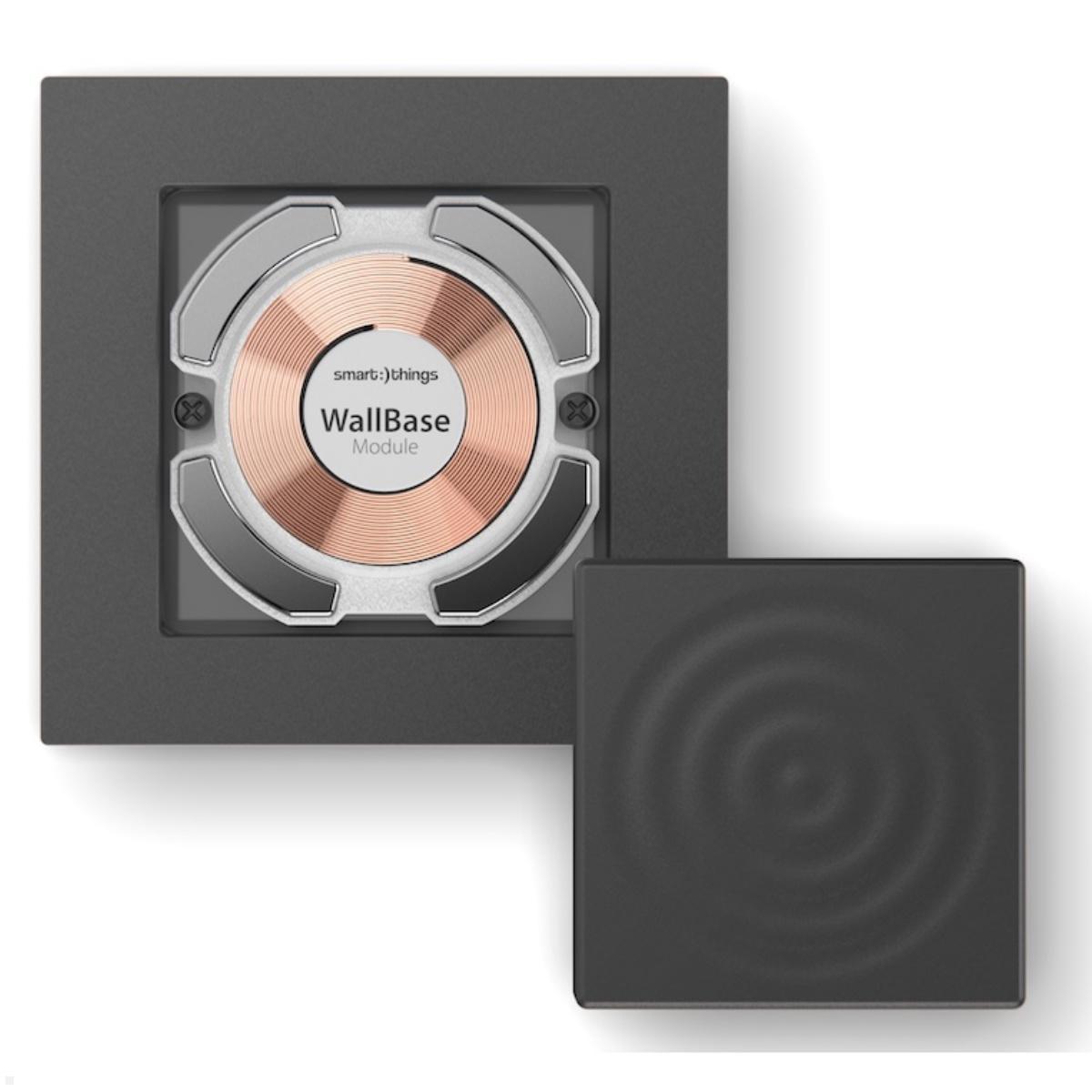

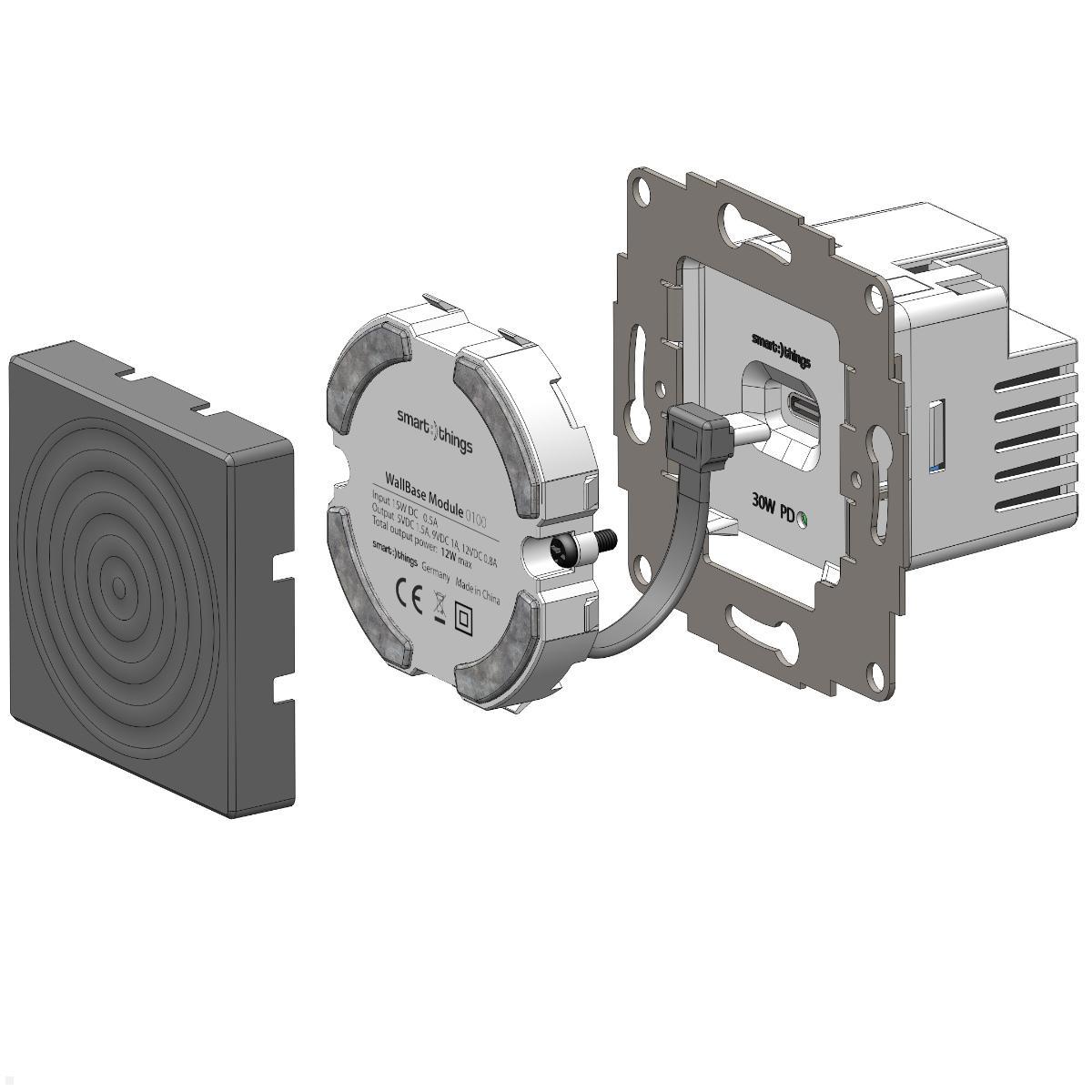

The smart things WallBase 55 Wave magnetic Qi Charger flush-mounted (WB55 b), matte black is a complete set for integrating a wireless Qi charging station into the wall. It consists of the flush-mounted power supply sC20 with 20 watts, an inductive WallBase charging module with up to 15 watts charging power, a USB-C flat ribbon connection cable and a cover cap in the 55 mm format in black‑gray matte (RAL 7021). The 55 mm insert is compatible with over 30 switch series from leading manufacturers such as Gira, Jung, Berker, Merten, Busch‑Jaeger, Kopp and Siemens. This allows the wireless charger to be seamlessly integrated into existing switch series.
Most current smartphones feature built-in Qi charging coils and magnets, so they can be held magnetically directly on the WallBase and optimally aligned for charging. In combination with a Qi‑certified case, smartphones without integrated magnets can also be magnetically attached and efficiently inductively charged. The WallBase 55 Wave system makes wireless charging a permanent part of building installation. With its compact 55 mm insert it fits common switch boxes and multi‑gang frames.
Technical Details smart things WallBase 55 Wave WB55 b Qi Charger
- Type: Flush-mounted Qi charger set with power supply and 55 mm cover cap
- Charging power WallBase module: Up to 15 watts inductive
- Power supply: Flush-mounted power supply sC20, 20 watts
- Qi certification: QI-ID 26820
- Compatibility: Gira, Jung, Berker, Merten, Busch‑Jaeger, Kopp, Siemens, and more
- Cover cap: 55 mm, RAL 7021 black‑gray matte
- Material: Plastic (PC‑ABS, FR V0), neodymium magnets
- Installation: Flush-mounted, compatible with 55 mm switch series
- Connection: USB‑C flat ribbon connection cable
- Dimensions incl. packaging (H×W×D): 100 x 100 x 58 mm
- Weight incl. cable and packaging: 360 g
- Color: Black‑gray matte (RAL 7021)

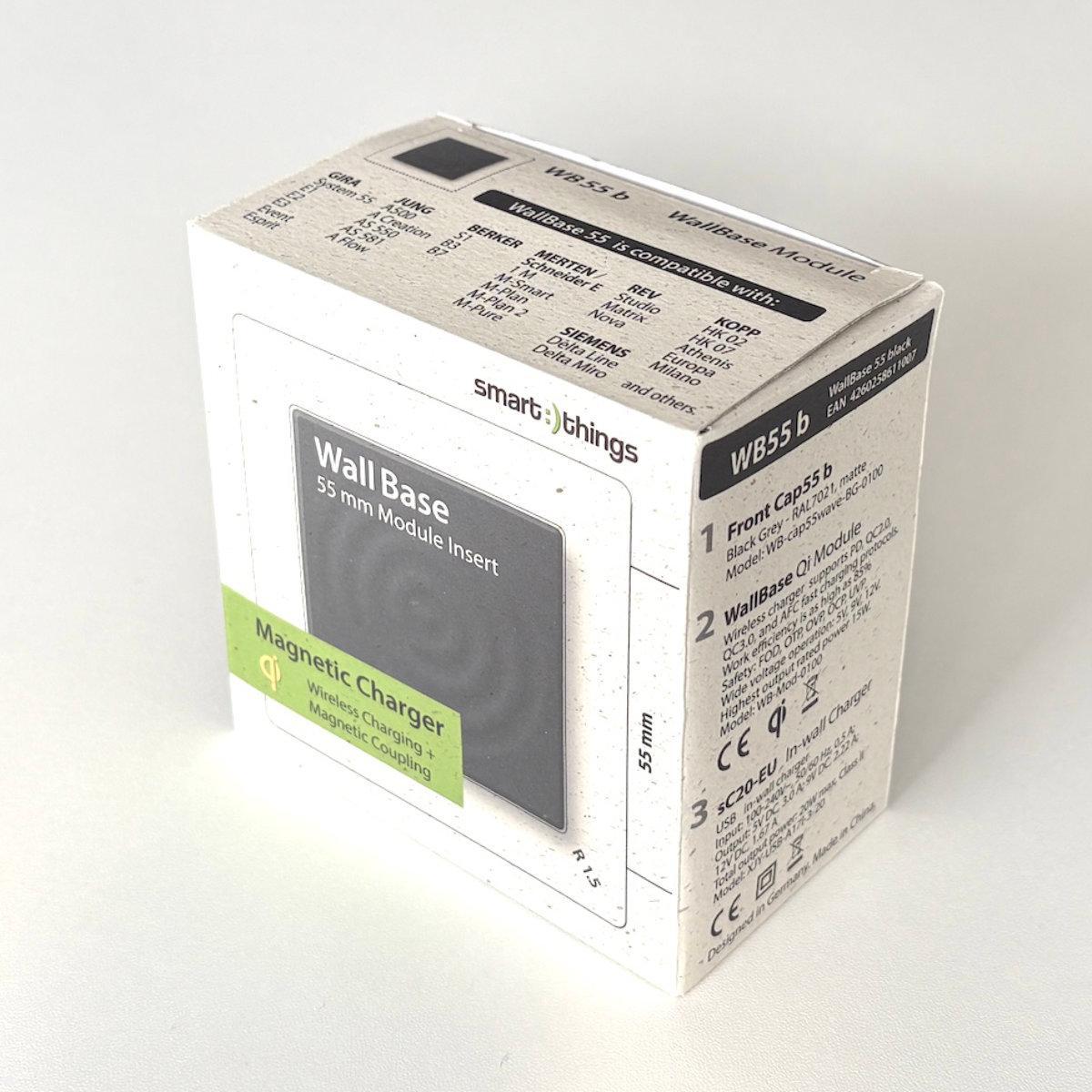

- Scope of delivery:
- Flush-mounted power supply sC20
- WallBase module
- USB‑C flat ribbon cable
- Cover cap

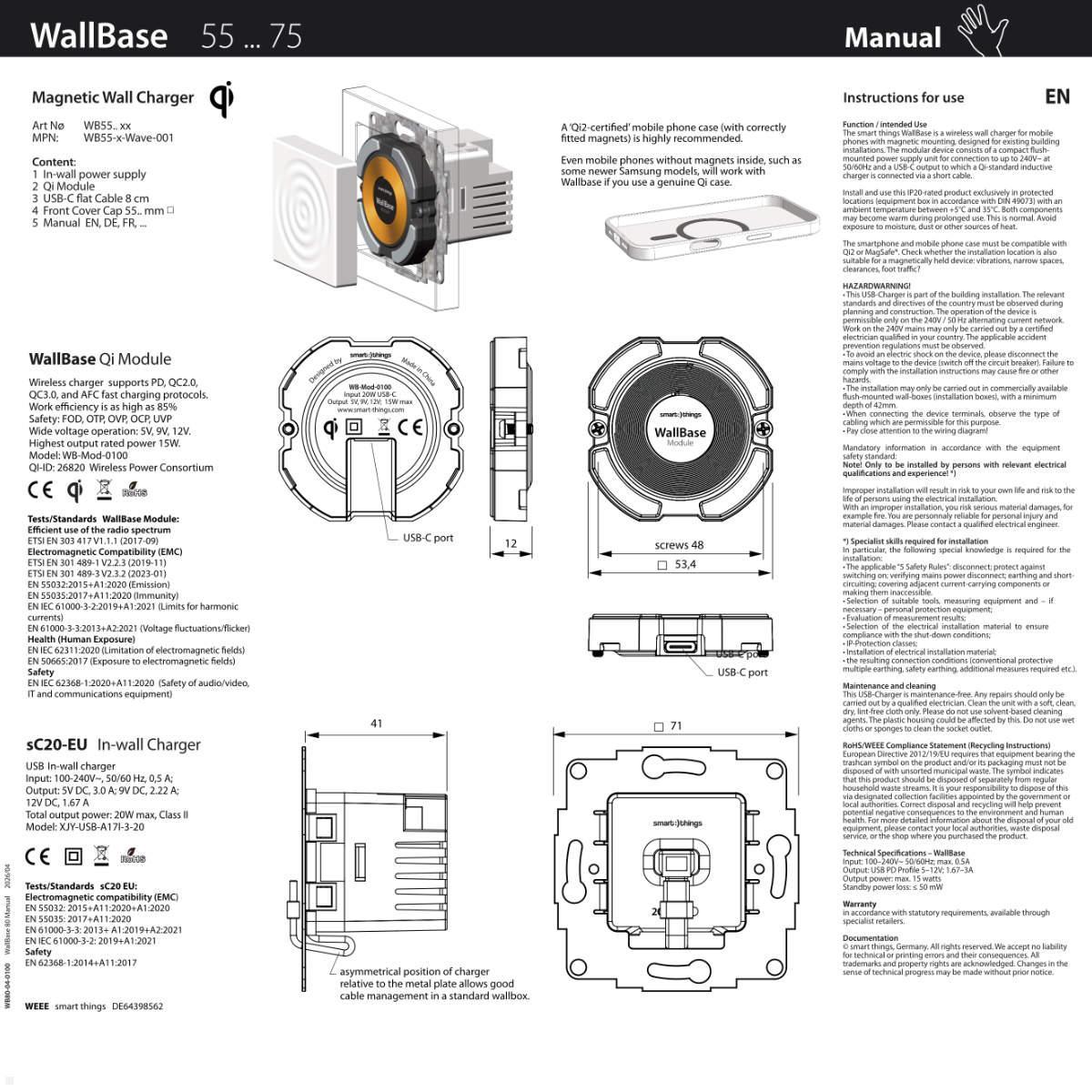

- Installation manual
| Installation manual: |  [pdf] |
|---|---|
| Material: | Kunststoff |
| Packaging dimensions (LxWxH in mm): | 100 x 100 x 58 |
| Scope of delivery: | 1x flush-mounted power supply unit sC20 | 1x WallBase module | 1x USB-C flat ribbon cable | 1x cover cap 55mm RAL 7021 | 1x installation manual |
| Contains installation material: | + |
| Warranty: | 1 year |
| Manufacturer/Importer: | smart things solutions GmbH, Grubmühlerfeldstraße 54, 82131 Gauting, info@smart-things.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the smart things WallBase 55 Wave magnetic Qi Charger flush-mounted (WB55 b)?
It is a complete flush-mounted Qi charger set for integrating a wireless charging station into the wall. It includes the flush-mount power supply sC20 (20 W), a WallBase module with up to 15 W inductive charging, a USB-C flat cable, and a 55 mm black-grey matte cap.
-
What charging power does the WallBase module deliver?
Inductive charging up to 15 W; the flush-mount power supply provides 20 W.
-
What is included in the package?
Flush-mount power supply sC20; WallBase module; USB-C flat cable; cap; mounting instructions.
-
Which switch series are compatible?
The 55 mm insert is compatible with over 30 switch series including Gira, Jung, Berker, Merten, Busch-Jaeger, Kopp and Siemens.
-
How does wireless charging work with magnets?
Most smartphones have Qi coils and can be held magnetically; with a Qi-certified case, devices without built-in magnets can be magnetically attached and charged inductively.
-
How is it installed and what are the dimensions?
Flush-mounted installation; compatible with 55 mm switch programs. Dimensions including packaging: 100 x 100 x 58 mm; weight including cable and packaging: 360 g.
-
What color/finish does the product have?
Black-grey matt (RAL 7021).
-
What is the Qi certification for the WallBase?
Qi certification: QI-ID 26820.
What is the smart things WallBase 55 Wave and how does the flush-mounted Qi charger work?
The smart things WallBase 55 Wave WB55 b is an innovative system that integrates wireless Qi charging directly into the building wall. Unlike conventional Qi charging stations that stand on a table or plug into an outlet, the WallBase 55 Wave is installed completely flush-mounted. The set includes a powerful flush-mounted power supply sC20 with 20 watts, an inductive WallBase charging module with up to 15 watts as well as a discreet 55 mm cover cap. Installation is carried out in a standard flush-mounted box. Thanks to the 55 mm standard dimension, the system is compatible with over 30 switch series, including Gira System 55, Jung A500, Berker S1, Merten M-Smart and many others. This makes wireless charging an invisible part of the existing switch installation. The smartphone is simply magnetically attached to the wall and charged immediately. Thanks to the integrated neodymium magnets, the device is held securely and is automatically optimally aligned with the charging coil.
For which smartphones and switch systems is the WallBase 55 Wave suitable?
The WallBase 55 Wave is compatible with all smartphones that support the Qi charging standard. Most current models already have integrated Qi charging coils and magnets, so they adhere magnetically to the WallBase and charge directly. For smartphones without integrated magnets, smart things offers Qi-certified cases as optional accessories. These cases equip the device with the necessary magnets so that these models are also held magnetically and efficiently charged inductively. The 55 mm insert fits in switch systems from Busch-Jaeger, Gira, Hager Berker, Jung, Kopp, Schneider Electric Merten, REV Ritter and Siemens. With Qi certification QI-ID 26820, the WallBase module meets all relevant international standards for wireless charging. The inductive charging module has been tested according to numerous ETSI and EN standards, including requirements for emissions, immunity and limitation of electromagnetic fields.
Which application areas are suitable for the wireless wall charger?
The WallBase 55 Wave is suitable for numerous application areas in private and commercial environments. In the smart home it can be installed, for example, next to the bed, in the hallway or in the kitchen to keep the smartphone always close at hand and charged. In hotels it offers guests an elegant charging option directly at the bedside, without additional cables or adapters. Offices and conference rooms benefit from the invisible integration into the wall, which keeps workspaces tidy. The flush-mounted charger is also used in medical practices, reception areas and restaurants. The reduced design in matte black-gray blends unobtrusively into almost any interior. As the system can be used in existing multi-frames next to light switches or sockets, it offers maximum flexibility in placement. The housing made of plastic with flame-retardant classification FR V0 ensures the highest safety for permanent installation in the wall.
