RAM Mounts GDS Tough-Dock iPad Pro 13 & Air 13 (RAM-GDS-DOCK-AP37CPU)
Highlights
- GDS Tough-Dock with USB-C 60W
- For iPad Pro 12.9, Pro 13 & Air 13
- IntelliSkin Next-Gen compatible
- VESA 75x75 or round base plate
- Compatible with Apple Pencil
GDS Tough-Dock cradle with USB-C charging function for iPad Pro 13 and Air 13

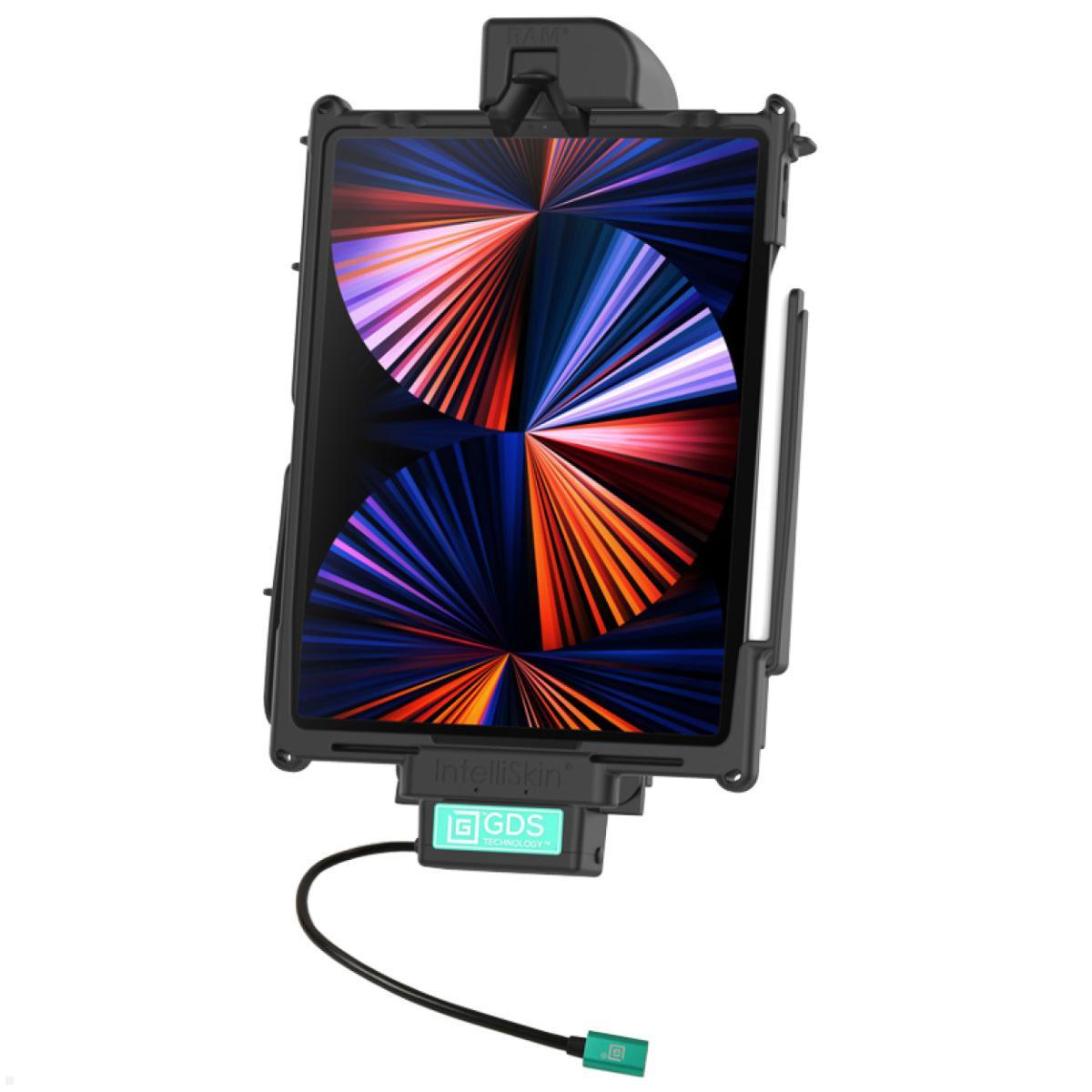

The RAM Mounts GDS Tough-Dock iPad Pro 13 & Air 13 (RAM-GDS-DOCK-AP37CPU) is a robust cradle with an integrated USB-C charging function and an output power of 60 watts. It is compatible with the Apple iPad Pro 12.9-inch (3rd to 6th generation), the iPad Pro 13-inch (M4 and M5) as well as the iPad Air 13-inch (M2, M3 and M4) when used with an IntelliSkin Next-Gen protective sleeve. The device is simply placed into the cradle and pressed in until the snap lock engages.
The precise cutouts for all buttons and ports preserve the full usability of the iPad, including use of the Apple Pencil. The inside of the cradle also allows the use of accessories such as the GDS hand-stand, hand-strap and kickstand. The back is prepared for both a VESA 75x75 mm mounting and a round base plate. A Power Delivery charger is recommended for power and is not included.
Technical details RAM Mounts GDS Tough-Dock RAM-GDS-DOCK-AP37CPU
- Type: GDS Tough-Dock cradle with snap-lock and charging function
- Connector: USB-C
- Output power: 60 watts
- Output voltage: 5-20V at 3A
- Input cable length: approx. 21 cm
- Hole pattern: AMPS 4-hole
- Mounting: screws, VESA 75x75 mm or round base plate
- Compatibility: iPad Pro 12.9 (3rd–6th gen.), iPad Pro 13 (M4, M5), iPad Air 13 (M2, M3, M4)
- Requirement: IntelliSkin Next-Gen protective sleeve (not included)
- Prepared for: GDS-FAN 12-VDC axial fan
- Compatible with accessories: GDS hand-stand, hand-strap, kickstand, Apple Pencil
- Scope of delivery: 1x RAM-GDS-DOCK-AP37CPU cradle
| Material: | Kunststoff |
|---|---|
| Suitable for: | Apple iPad Pro 12.9 (3.-6. Gen.) | Apple iPad Pro 13 (M4, M5) | Apple iPad Air 13 (M2, M3, M4) |
| Scope of delivery: | 1x RAM-GDS-DOCK-AP37CPU mounting bracket |
| Contains installation material: | + |
| Warranty: | 1 year |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| color: | Black |
| Tablet: | Apple iPad Air 13.0 (M2), Apple iPad Air 13.0 (M3), Apple iPad Air 13.0 (M4), Apple iPad Pro 12.9 (3. Gen. 2018), Apple iPad Pro 12.9 (4. Gen. 2020), Apple iPad Pro 12.9 (5. Gen. 2021), Apple iPad Pro 12.9 (6. Gen. 2022), Apple iPad Pro 13.0 (M4), Apple iPad Pro 13.0 (M5) |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts GDS Tough-Dock iPad Pro 13 & Air 13?
A robust cradle with an integrated USB-C charging function and 60-watt output.
-
Which devices are supported?
Compatible with iPad Pro 12.9-inch (3rd–6th Gen), iPad Pro 13-inch (M4, M5) and iPad Air 13-inch (M2, M3, M4) when used with an IntelliSkin Next-Gen case.
-
What power does it deliver?
USB-C output of 60W, 5–20V at 3A; a Power Delivery charger is recommended but not included.
-
How do you mount it?
Mounting is via screws, or using a VESA 75x75 mm or round base plate.
-
Does it keep the iPad fully usable?
Precise cutouts maintain full access to all controls and ports, including the Apple Pencil.
-
Which accessories are compatible?
GDS Hand-Stand, Hand-Strap, Kickstand and Apple Pencil.
-
What is included in the package?
1x RAM-GDS-DOCK-AP37CPU cradle.
What is the RAM Mounts GDS Tough-Dock cradle for iPad Pro 13 used for?
The RAM Mounts GDS Tough-Dock cradle RAM-GDS-DOCK-AP37CPU is a professional docking solution for the secure use of Apple iPads with large displays in demanding environments. The Tough-Dock holds the iPad securely in position with a robust snap lock and simultaneously powers it via the USB-C port with up to 60 watts of charging power. This makes the cradle ideal for use in vehicles, on forklifts, in warehouses, or at industrial workstations. The iPad is placed into the dock together with an IntelliSkin Next-Gen protective case, creating a secure mechanical and electrical connection. Unlike the smaller model, the AP37CPU additionally features a VESA 75x75 mm mount on the back, significantly expanding mounting options. Those who purchase the GDS Tough-Dock cradle receive a proven RAM Mounts solution for commercial continuous use.
Which Apple iPads are compatible with the GDS Tough-Dock AP37CPU cradle?
The cradle supports a wide range of Apple iPads with large displays. Compatible devices include the iPad Pro 12.9-inch (3rd to 6th generation), the iPad Pro 13-inch in the M4 and M5 variants, and the iPad Air 13-inch in the M2, M3 and M4 versions. A suitable IntelliSkin Next-Gen protective case is required for use, which provides the iPad with the necessary contacts and correct fit for the dock. The protective case is sold separately and additionally protects the device from impacts and scratches during daily use. All buttons, ports and controls of the iPad remain fully accessible thanks to the precise cutouts in the cradle. The Apple Pencil can still be used. Accessories such as the GDS Hand-Stand, Hand-Strap or Kickstand can be used without issue thanks to the cutout on the inside.
How is the Tough-Dock cradle mounted and what accessories are required?

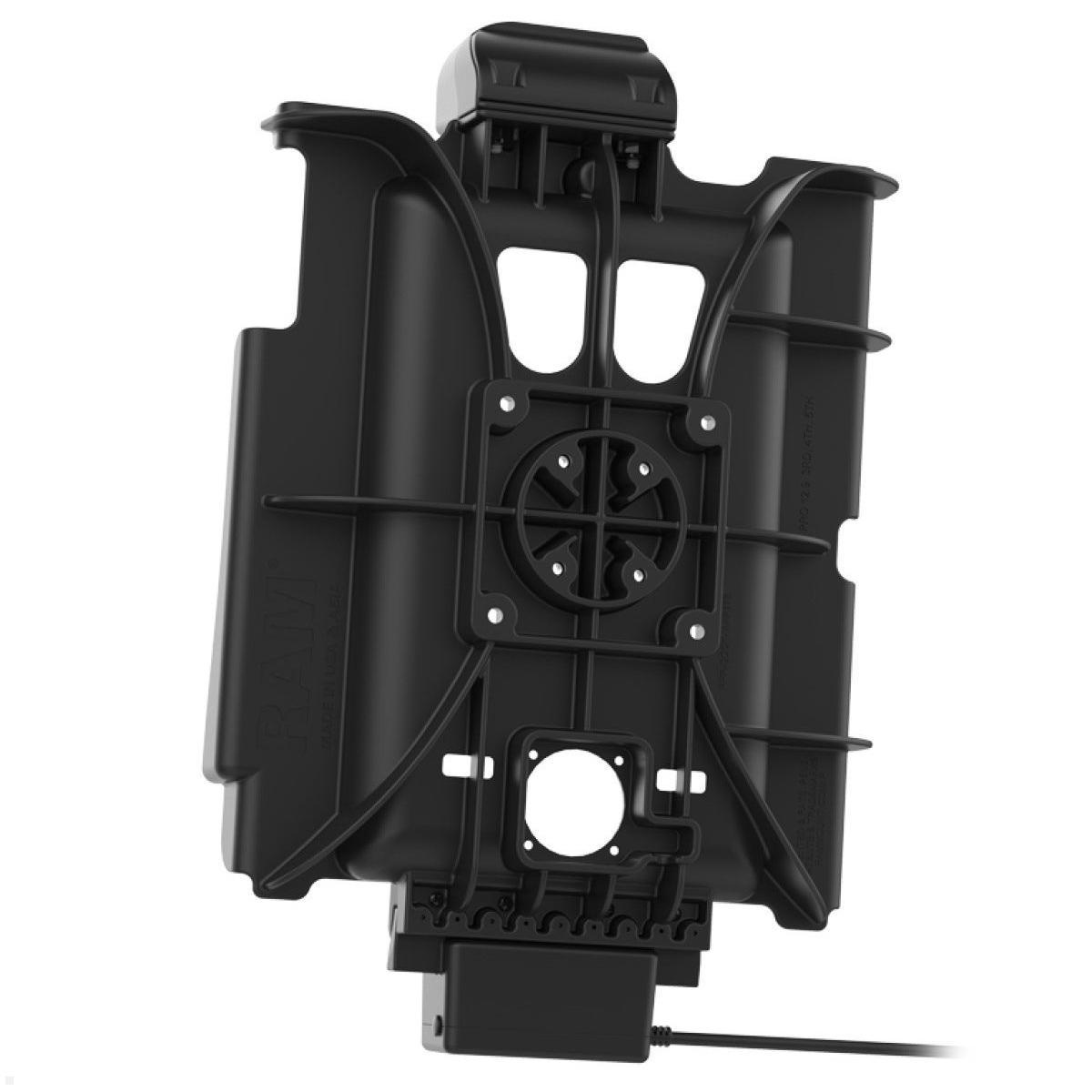

The back of the cradle is equipped with an AMPS 4-hole pattern and also provides a VESA 75x75 mm mounting interface. This allows it to be mounted to both RAM Mounts mounting systems and VESA-compatible fixtures. A round base plate can alternatively be used as a connection element to suction cup mounts, tube and pole clamps, or vehicle mounts from the extensive RAM Mounts range. For power supply, a separate Power Delivery charger with sufficient output is required, as the dock itself does not include a power supply. Optionally, a GDS-FAN 12-VDC axial fan can be connected to additionally cool the iPad during intensive use or high ambient temperatures. The input cable has a length of approximately 21 centimeters and allows flexible cable routing within the mounting assembly. The scope of delivery includes only the cradle; depicted devices and other accessories are not included.
