RAM Mounts GDS Tough-Dock Tab Active3 & 5 (RAM-GDS-DOCK-SAM62CPU)
Highlights
- GDS Tough-Dock with USB-C 60W
- For Tab Active2, Active3 & Active5
- IntelliSkin Next Gen compatible
- Compatible with GDS Hand-Stand
- Prepared for GDS axial fan
GDS Tough-Dock cradle with USB-C charging function for Samsung Tab Active3 and Active5

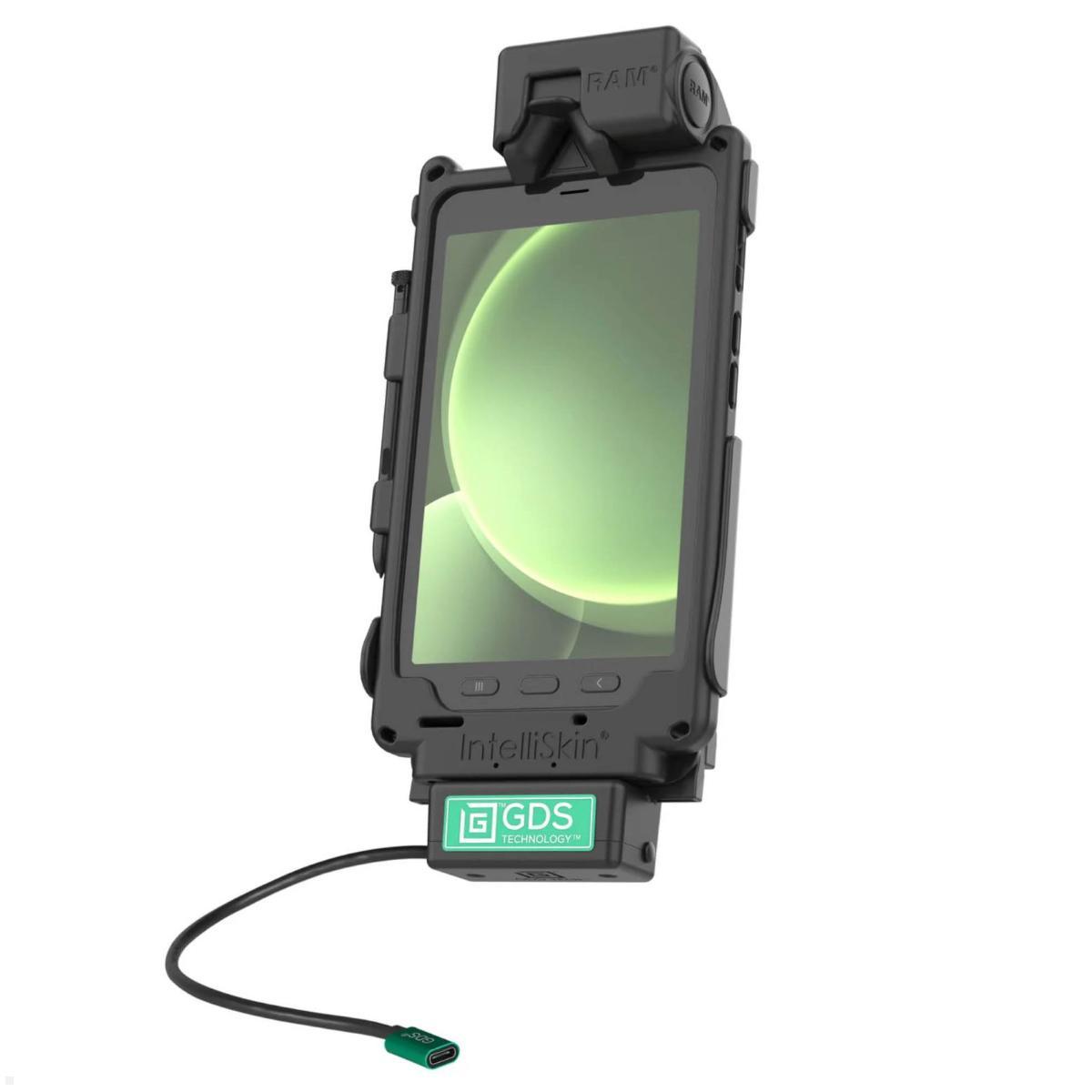

The RAM Mounts GDS Tough-Dock Tab Active3 & 5 (RAM-GDS-DOCK-SAM62CPU) is a rugged cradle with integrated USB-C charging function and a 60 watt output. It is compatible with the Samsung Tab Active2, Tab Active3 and Tab Active5 when used with an IntelliSkin Next-Gen protective case. The device is simply placed into the cradle and pressed in until the snap closure clicks into place.
Precise cutouts for all buttons and ports preserve the full operability of the tablet. The cradle is compatible with the GDS Hand-Stand and prepared for the optional GDS 12-VDC axial fan for cooling. The back is prepared to accept a round base plate, which is available separately. A Power Delivery charger is recommended for power supply.
Technical Details RAM Mounts GDS Tough-Dock RAM-GDS-DOCK-SAM62CPU
- Type: GDS Tough-Dock cradle with snap closure and charging function
- Connector: USB-C
- Output power: 60 watts
- Output voltage: 5–20V at 3A
- Input cable length: approx. 21 cm
- Hole pattern: AMPS 4-hole
- Mounting: screws
- Compatibility: Samsung Tab Active2, Tab Active3, Tab Active5
- Requirement: IntelliSkin Next-Gen protective case (not included)
- Prepared for: GDS-FAN 12-VDC axial fan
- Compatible with accessories: GDS Hand-Stand
- Note: Does not support 'No Battery Mode'
- Included: 1x RAM-GDS-DOCK-SAM62CPU cradle
| Material: | Kunststoff |
|---|---|
| Scope of delivery: | 1x RAM-GDS-DOCK-SAM62CPU mounting bracket |
| Contains installation material: | + |
| Warranty: | 1 year |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM-GDS-DOCK-SAM62CPU?
A rugged GDS Tough-Dock cradle with a snap-close and USB-C charging function, offering 60W output for Samsung Tab Active3 and Active5.
-
Which tablets are compatible?
Samsung Tab Active2, Active3 and Active5 work with the cradle when used with an IntelliSkin Next-Gen protective case (not included).
-
How do you install the tablet in the cradle?
Insert the tablet into the cradle and push until the snap locks into place.
-
What are the charging specifications?
USB-C connector with 60W output; output voltage 5–20V at 3A.
-
What accessories is it prepared for or compatible with?
Prepared for the GDS 12-VDC axial cooling fan; compatible with the GDS Hand-Stand; back panel prepared for a round base plate (sold separately).
-
Are there any limitations?
Note: It does not support No Battery Mode.
-
What is included in the package?
Included: 1x RAM-GDS-DOCK-SAM62CPU cradle.
-
What power supply is recommended?
A Power Delivery charger is recommended for operation.
What is the RAM Mounts GDS Tough-Dock cradle for the Samsung Tab Active3 used for?
The RAM Mounts GDS Tough-Dock cradle RAM-GDS-DOCK-SAM62CPU is a professional docking solution for the secure use of Samsung tablets from the Active series in demanding environments. The Tough-Dock holds the tablet firmly in position with a robust snap lock and at the same time powers it via the USB-C port with up to 60 watts of charging power. This makes the cradle ideal for use in vehicles, on forklifts, in warehouses, or at industrial workstations. The tablet is placed into the dock together with an IntelliSkin Next-Gen protective cover, creating a secure mechanical and electrical connection. The input cable, approximately 21 centimeters long, allows flexible cable routing within the mounting assembly. Anyone looking to purchase the GDS Tough-Dock cradle receives a proven RAM Mounts solution for commercial continuous use.
Which Samsung tablets is the GDS Tough-Dock SAM62CPU cradle compatible with?
The cradle supports three models of the Samsung Tab Active series: the Tab Active2, the Tab Active3, and the Tab Active5. These rugged business tablets are specifically designed for use in harsh conditions and are often used in logistics, field service, and manufacturing. A matching IntelliSkin Next-Gen protective cover, sold separately, is required for use. It is important to note that the No Battery Mode is not supported by this dock. All buttons, ports, and controls of the tablet remain fully accessible thanks to the precise cutouts. The optional GDS Hand-Stand further expands the range of applications by providing an ergonomic grip solution for mobile use.
What mounting and expansion options does the Tough-Dock cradle offer?

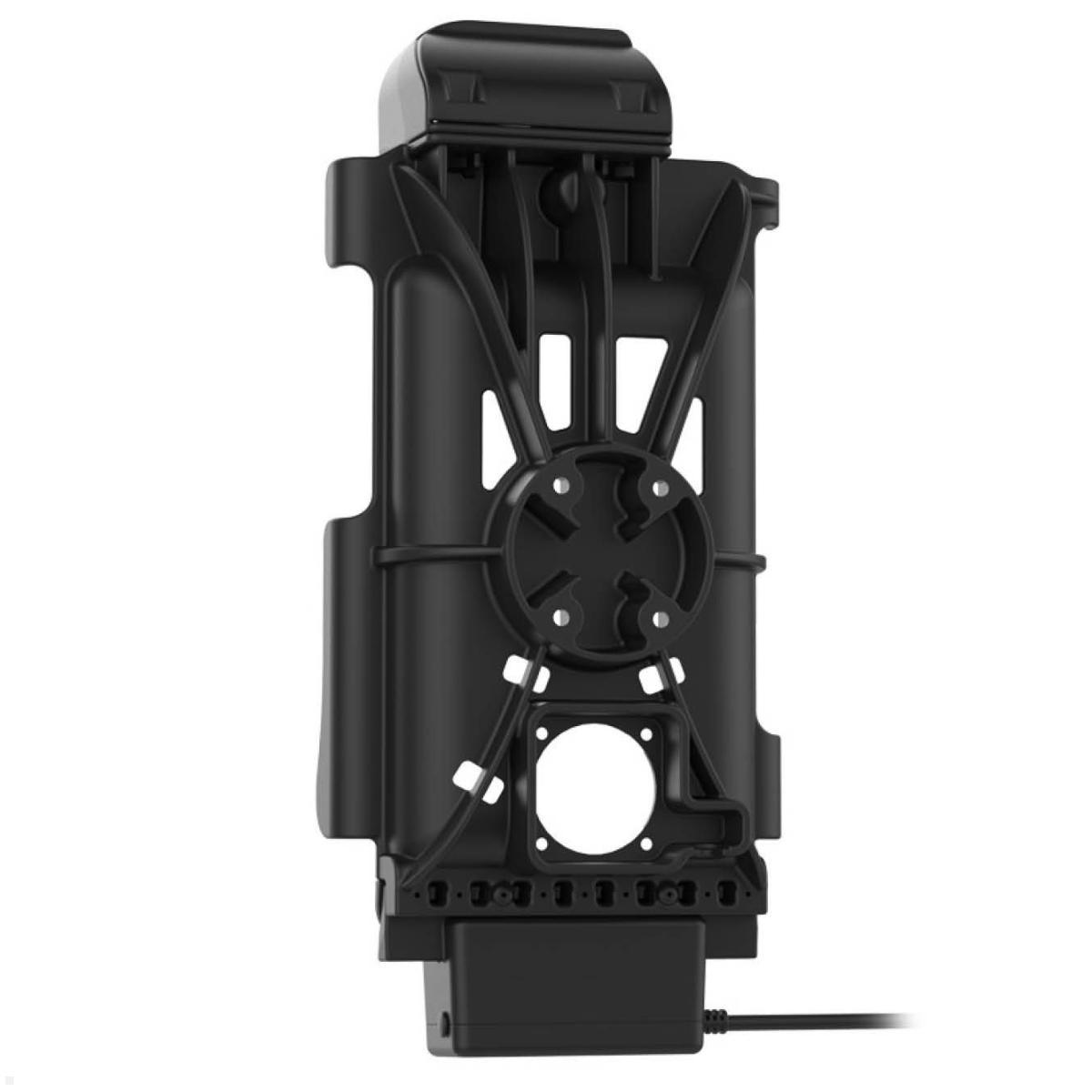

The back of the cradle features an AMPS 4-hole pattern and is mounted using screws. It is prepared to accept a round base plate that serves as the connection element to the various RAM Mounts mounting systems. This base plate is available separately and allows combination with suction cup mounts, tube- and pole-clamps, or vehicle mounts from the extensive RAM Mounts range. An optional GDS 12-VDC axial fan can be connected to actively cool the tablet during intensive use or high ambient temperatures. This is particularly relevant in vehicles or near machinery where elevated temperatures can affect performance. The scope of delivery includes only the cradle; pictured devices and other accessories are not included.
